Discontinuous PU sandwich panel machine

Discontinuous PU sandwich panel machine

    Payment Type: L/C,T/T,D/P
    Terms of Trade: FOB,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
    Productivity: 8-22m/min
    Brand: ZhongTuo
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 30 sets/month
    Certificate: ISO9001, CE
    Port: TIANJIN

Basic Info

Model No.: zt-010

Product Description

Discontinuous PU Sandwich Panel Machine

1. Made by Korean Technology and designer

2. ISO CE certificate

3. Competitive price

4. Thoughtful sales service

Fully Automatic Sandwich Panel Making Machine, wall and roof Panel Roll Forming Machine line, Discontinuous Pu Sandwich Panel Machine allows you to make sandwich panel in batch and fully automatic.

It-has-including unwinding, before cutting, film, beading / molding, rock wool and spray delivery, Edge foam, continuous curing, cutting and other functions, high degree of automation, stable performance. Edge polyurethane foam systems, automatic feeding system, to ensure that the raw material requirements in full accordance with the ratio of mixing, spray evenly; using a reliable foam technology to ensure uniform sheet foam, dense, sheet closely connected. The production line is equipped with automatic control system, use friendly interface for easy operation, monitoring, advanced computer control, easy to adjust the entire line of argument, effectively ensure the production line stable and efficient operation.

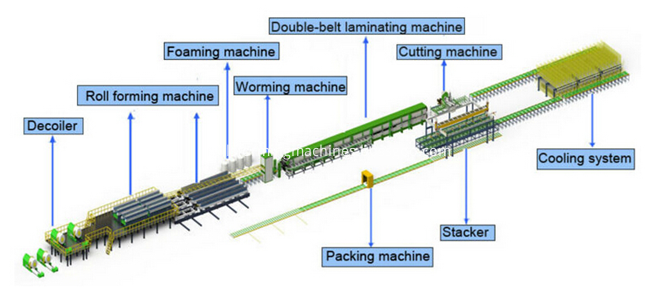

Discontinuous PU Sandwich Panel Machine working flow:


1

Sandwich Panel for EPS, PU and rockwood making machine production Process:


2



PU Panel, EPS panel, Rock wood panel ects, sandwich panel drawing profiles showing:

PU Sandwich Panel Production Line is specially designed for producing Z-lock PU Sandwich Panel continuously.

The facing material of this panel can be PPGI, Aluminum foil, PVC sheets, etc and the core materials can be Polyurethane, Mineral Wool, Glass Wool, PIR, Phenolic or EPS.Panel shape can be tailor-made according to customer's detailed requirements.


4

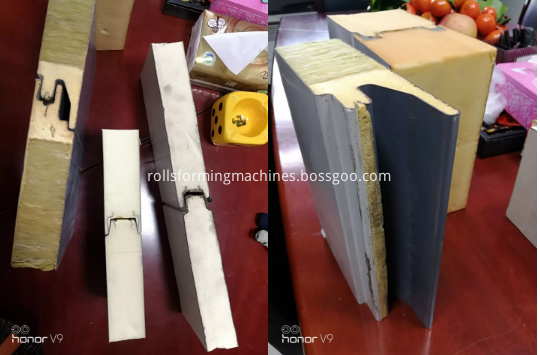

Here are some finished product pictures for your reference:


5


Main parameters:

Speed: 0~8m/min, frequency control.

Total power: about 200 KW

Production line length: more than 100 m

Workshop required: about 120m x 18mx 5.5m

PU injection machine: two or four components, original from Italy

Double belt length: 24m or tailor-made

Speed

0~8m/min, frequency control

Total power

about 200 KW

Production line length

more than 100 m

Workshop required

about 120m x 18m x 5.5m

PU injection machine

two or four components

Double belt length

24m or tailor-made

6


7

FAQ:

1.Does one Discontinuous PU sandwich panel machine can only produce one style product?

Not exactly. Our machines can produce more kinds of by change their rollers.

2. Do you have after sales support?
Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

3. What can you do if the machine broken?

Our machine's warranty period is 12months. And if the broken parts can't be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.

Looking for ideal Discontinuous PU sandwich panel machine manufacturer & supplier ? We have a wide selection at great prices to help you get the target product. If you have any question, please contact us.
