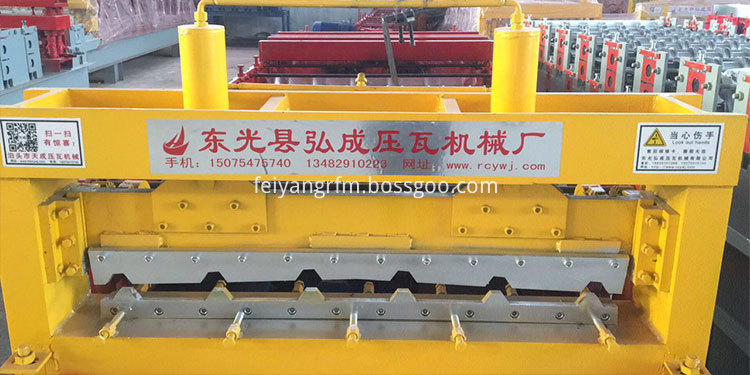

Standard roof wall steel sheet color steel roll forming machine

  • Standard roof wall steel sheet color steel roll forming machine
  • Standard roof wall steel sheet color steel roll forming machine
  • Standard roof wall steel sheet color steel roll forming machine
  • Standard roof wall steel sheet color steel roll forming machine

Standard roof wall steel sheet color steel roll forming machine

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 10 Days
    Packaging: Naked
    Productivity: 50 set/month
    Brand: Feiyang
    Transportation: Ocean
    Place of Origin: Chine, Hebei
    Supply Ability: 100 set/month
    Certificate: ISO
    Port: Tianjin Port

Basic Info

Model No.: FY-840-1025

Product Description

Roof sheet panel corrugate color roll Steel Roll Forming Machine

Product Description

Iron sheet making machine has the same function to make roof sheet but different with the normal quality machine, it can use more than 10 years and has highly working speed. For the sheet making machine is also called the metal step tile making machine, or metal roofing sheet machine.



Roof And Wall Panel Roll Forming Machine 7

Roof And Wall Panel Roll Forming Machine 8

Roof And Wall Panel Roll Forming Machine 9


The roof and wall tile steel Roll Forming Machine production line is high precision and good productivity.
It needs 1-2 persons to handle the machine.
PLC control the machine, make the machine become more easily.
The cutting system can make the cut automatically with PLC control.
The whole work process is high safety level.


Roof and Wall Panel Roll forming machine Production Process:

roll-forming-machine-3

manual uncoiler - roll Forming Machine - computer control system - hydraulic control system - cutting system - output table


Parameter of the Roof and Wall Panel Roll forming machine:

Name Color steel roll forming machine
Thickness 0.3-0.8mm
Material of the cutting blade Cr12
Width of the plate 914.1000.1250mm
Roller processing Quenching,chroming
Rollers 11 rows
Diameter of the roller Φ70mm
Machine frame 300 H steel
Productivity 8-10 m/min
Weight:About 2.8T
Total power 4+4kw
Dimension of major structure(L*W*H) 5.5M*1.5M*1.5M


Finished Tile:

Roof And Wall Panel Roll Forming Machine 10


Product Detail


Computer control cabinet:

The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use

Roof And Wall Panel Roll Forming Machine 1

Hydraulic system:

hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

Roof And Wall Panel Roll Forming Machine 2



Manual uncoiler:

Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.

Loading capacity:5T

Inner diameter: 500-508mm

Roof And Wall Panel Roll Forming Machine 3



Roller system

Material of rollers:45# steel,roller surfaces polishing, hard plating .The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Roof And Wall Panel Roll Forming Machine 11


Cutting system

Material of the cutting:Cr12Mov with quenched treatment.It can decide cut panel dimension according to the hydraulic drive and PLC computer control system.

Roof And Wall Panel Roll Forming Machine 12
Our Service:

1. Technology:We have centers and innovative designing teams for different kinds of production lines.
2. After Sale Service:Warranty period 1 year , after this period , we are willing to give help if customer needs accessory . The real cooperation will not end at the delivery . we believe that satisfied after sale service means a lot.
3. Inspected by the Sellers:After completing the manufacturing and assembling of the equipments, we will test the machines and commissioning in the workshop.
4. Inspected by the Buyers:After confirmation of a sound work of the line, we will invite our customer to send their representatives to inspect the production lines in our factories.

Packaging & Shipping

1.We have professional technicians for loading

Guaranteed the goods load into container without any damage.

2. Transportation : Machines need one 40 feet container to hold

3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
