Ibr metal Roof  panel Roll Forming Machine

  • Ibr metal Roof  panel Roll Forming Machine
  • Ibr metal Roof  panel Roll Forming Machine
  • Ibr metal Roof  panel Roll Forming Machine
  • Ibr metal Roof  panel Roll Forming Machine

Ibr metal Roof panel Roll Forming Machine

    Payment Type: L/C,T/T,D/P,Paypal,Western Union
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 10 Days
    Packaging: Main machine is naked and the computer control box is packed by carton box
    Transportation: Ocean
    Port: Tianjin Port,Qingdao Port

Basic Info

Model No.: FY-840

Product Description

Ibr metal Roof Panel Roll Forming Machine


Products Feature:

1. A stylish and attractive design, giving the apperance of a traditional roof tile.

2. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.

3.The raw material can be in different color, with elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa,civil construction etc.

Check the panel profile popular over the world:

IBR Roofing Roll Forming Machine

Profile of Roll Forming Machine


Quick Details Of IBR Roll Forming Machine

· Condition: New

· Type: Tile Forming Machine

· Tile Type: Colored Steel

· Use: Roof

· Production Capacity: 8-10m/min

· Place of Origin: Hebei, China (Mainland)

· Brand Name: FY

· Model Number: FY840

· Power(W): 4+4kw

· Voltage: 380V 50Hz 3phases

· Dimension(L*W*H): 7.35*1.55*1.51m

· Weight: about 2.8T

· Warranty: 1year

· After-sales Service Provided: Overseas service center available

· color: blue

· raw material width: 1000mm

· working productivity: 8-10m/min

· raw material thickness: 0.3-0.8mmm

· type: automatic

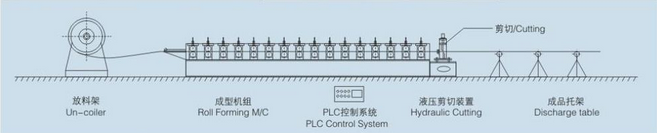

The Chart of Process Flow:

manual uncoiler - Roll forming machine - computer control system - hydraulic control system - cutting system - output table


Process about Roll Forming Machine


1. Manual Uncoiler

Manual decoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T

Inner diameter: 500-508mm

2. Feeding Table

feeding table

Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

3. Hydraulic System

335904282176549766

Power:4kw,Hydraulic oil: 40#

hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

4.Computer Control Cabinet

656351922770680053

The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.

PLC:EURA

5.Cutting System:

Cutting of roll forming machine

and-wall-panel-roll-forming-machine/ibr-metal-roof-panel-roll-forming-machine-55836439.html

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

and-wall-panel-roll-forming-machine/ibr-metal-roof-panel-roll-forming-machine-55836439.html

Material of blades: Cr12,quenching treatment

http://feiyangrfm.bossgoo.com/roof-and-wall-panel-roll-forming-machine/ibr-metal-roof-panel-roll-forming-machine-55836439.html

6.Output Table

http://feiyangrfm.bossgoo.com/roof-and-wall-panel-roll-forming-machine/ibr-metal-roof-panel-roll-forming-machine-55836439.html and-wall-panel-roll-forming-machine/ibr-metal-roof-panel-roll-forming-machine-55836439.html

http://feiyangrfm.bossgoo.com/roof-and-wall-panel-roll-forming-machine/ibr-metal-roof-panel-roll-forming-machine-55836439.html and-wall-panel-roll-forming-machine/ibr-metal-roof-panel-roll-forming-machine-55836439.html

It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.

http://feiyangrfm.bossgoo.com/roof-and-wall-panel-roll-forming-machine/ibr-metal-roof-panel-roll-forming-machine-55836439.html


http://feiyangrfm.bossgoo.com/roof-and-wall-panel-roll-forming-machine/ibr-metal-roof-panel-roll-forming-machine-55836439.html and-wall-panel-roll-forming-machine/ibr-metal-roof-panel-roll-forming-machine-55836439.html
