Roll Shutter Box Series Forming Machine

  • Roll Shutter Box Series Forming Machine
  • Roll Shutter Box Series Forming Machine
  • Roll Shutter Box Series Forming Machine
  • Roll Shutter Box Series Forming Machine

Roll Shutter Box Series Forming Machine

    Brand: longbo
    Transportation: Ocean
    Place of Origin: china
    Port: shanghai

Product Description

Main components of the line:

NO.

name

quantity

Main roll former

1

Un-coiler (2 tons ) MANUAL

2

2

Main roll former

2

3

Saw cutter

2

4

PLC control cabinet

2

5

Output table with rollers(6 meters)

2

Main parameter

1. Running material: Aluminum & Pre-painted Steel

2. Forming speed:6-15m/min

3. Forming steps: 16(as per drawing A)

Forming steps: 8(as per drawing B)

4. Thickness: 0.8mm-1mm

5.Roller material: GCr15、 HRC 60.Quchend; roller diameter φ120

6. Material of shaft: #45 steel, China standard

7. Drive system: chains Transmission system,

8. Main Motor Power: 5.5 KW

9. Cutting system: Flying saw cutting (3KW), cut off after forming.

10. PLC Control system: TOUCH SCREEN: DELTA

PLC: DELTA

INVERTER: DELTA

ENCODER: OMRON

Low components of electricity: Schneider Germany

11. Rack row of work place: Steel rack of 446X199H; Detachable wall plate type row of work place

12. Un-coiler: manual un-coiler: 2 tons capacity.

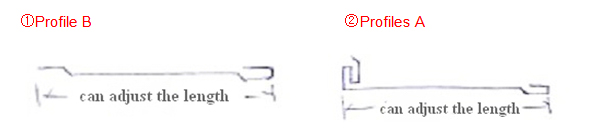

13. Drawings of profile

14. Dimension of Profile A: 6500*900*900MM Weight: 4Tons

Dimension of Profile B: 3000*900*900MM Weight: 2.5Tons

15. The picture of profiles:

16. Main consist of the machine

Un-coiler ----- Feeding device ----- PLC control -----Roll forming ----- Pneumatic flying saw device--- Run out table

WUXI LONGBO ROLL FORMING MACHINERY CO.,LTD

 Wuxi longbo roll forming machinery company, where located in wuxi city, jiangsu province, 110 km far away from shanghai. Specialized in manufacture windows & doors foam insulated shutters slat machines; Metal single rolling shutters machines; Continuous & dis-continuous garage/sectional doors panel production line; Roll up doors machines; As wellas others construation special profiles Forming Machine. Design by copra software germany. We have export many machines to east eu; russia; middle east; south american and africa.
